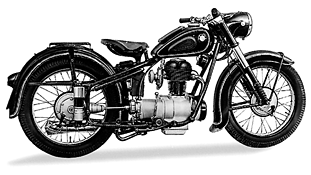

BMW R 25/2
Number sold 38.651
Price 1.990,- DM
| Engine | |
|
|
|
| Internal Designation | 224/3 |
| Engine type | four-stroke vertical single cylinder engine |
| Bore/stroke | 68 x 68 mm |
| Cubic capacity | 247 cm3 |
| Max power | 12 PS at 5800 rpm |
| Compression ratio | 6,5 : 1 |
| Valves per cylinder | ohv |
| Carburation system | 1 Bing type 1 / 22 / 44 or SAWE Typ K 22 F |
| Engine lubrication | forced-feed lubrication |
| Oil pump | gear pump |
|
|
|
| Power transmission | |
|
|
|
| Clutch | single discs, dry |
| Number of gears | 4 |
| Shifting | foot Shifting (+ auxiliary manual switch on gearing block) |
| Gear ratios | 6,1 / 3,0 / 2,04 / 1,54 |
| Rear wheel ratio | 4,5 : 1 (with sidecar 5,14 : 1) |
| Bevel/crown wheel | 6 / 27 teeth (with sidecar 7 : 36) |
|
|
|
| Electrical system | |
|
|
|
| Alternator | Noris ZLZ 45/60; 6 V / max. 60 W |
| Ignition | battery ignition |
| Spark plugs | Bosch DM 240 T 1 |
|
|
|
| Suspension | |
|
|
|
| Designation | 225/2 |
| Type of frame | closed steel twin-loop frame, welded |
| Front suspension | telescopic fork |
| Rear suspension | telescopic fork |
| wheel rims | 3 x 19 |
| Tyres front | 3,25 x 19 |
| Tyres rear | 3,25 x 19 |
| Brakes front | drum brake Ø 160 mm |
| Brakes rear | drum brake Ø 160 mm |
|
|
|
| Dimensions and weights | |
|
|
|
| Length x width x height | 2020 x 790 x 730 (saddle) mm |
| Wheel base | 1335 mm |
| Ground clearance | 92 mm |
| Tank capacity | 12 l |
| Unladen weight, full tank | 142 kg |
| permitted loading | 300 kg (with sidecar 375 kg) |
| riding/exhaust noise | 84 / 85 phon |
| Fuel consumption | ca. 2,9 l / 100 km |
| Oil consumption | ca. 0,7 l / 1000 km |
| Top speed | 105 km/h (with sidecar 80 km/h) |
|
|
|
